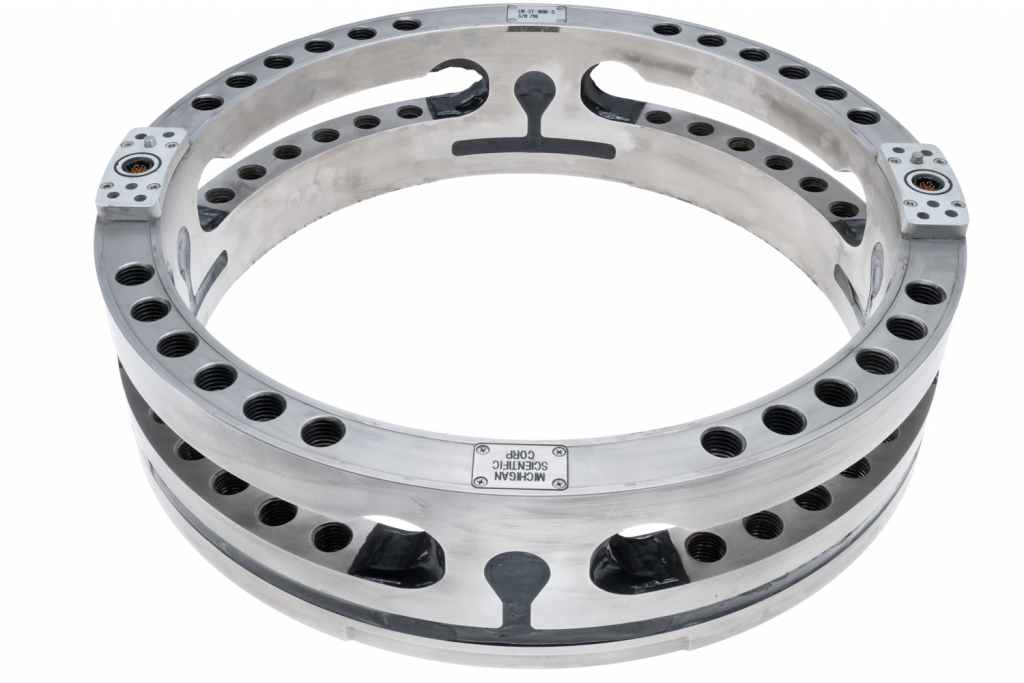

الموديل LW-2T-60K-S & LW-2T-100K-S Heavy Duty Wheel Force Transducer

المميزات

  • Up to 100,000 lbf (445 kN) radial load capacity
  • Up to 80,000 lbf-ft (108 kN-m) moment capacity
  • يقيس 3 قوى و 3 لحظات
  • يقيس تسارع X & Z
  • Measures the combined loads for a dual wheel set or a single tire
  • يتكيف مع عجلات مقاس 20 بوصات وأكبر
  • يتكيف مع أنماط البراغي المحورية بقطر 285 مم و 335 مم
  • محمية بيئيا
  • هيكل متين من الفولاذ المقاوم للصدأ
  • تعويض درجة الحرارة

الوصف

The LW-2T-60K-S and LW-2T-100K-S Wheel Force Transducers (WFT) are capable of measuring all of the wheel forces and moments on Class 8 trucks and large off-road vehicles. They provide independent output signals for vertical, lateral, and longitudinal forces as well as camber, steer and torque moments. Completely weatherproof, they are ideal for on-road and off-road measurements in all conditions. Both models can also be used to monitor and control laboratory tests. One WFT measures the combined loads for either a dual wheel set or a single tire.

عند استخدام حلقة انزلاق خارجية ، يمكن تركيب حزمة مكبر الصوت بسهولة على محول الطاقة. يقوم بتضخيم إشارات محول الطاقة وترقيمها قبل أن تمر عبر الحلقة الانزلاقية. تشتهر مجموعات Michigan Scientific Slip Ring في جميع أنحاء العالم بجودة الإشارة والتصميم القوي.

The CT3 User Interface Box performs real-time coordinate transformation and crosstalk correction, and provides CAN FD, CAN 2.0, and Ethernet signal outputs. EtherCAT and analog signal outputs are also available with optional modules. An embedded webpage accessed via USB allows the user to easily configure the WFT system. A front display indicates important information and prompts the user with instructions.
